Lift
tables - single scissor
Single
scissor lift table:
Most
manufactured and used scissor lift table is of the
type single scissor. This lift table are used in a
variety of workplaces and can be placed either in
door or out door. It can be mounted directly on
the floor or in a pit making the platform level
with the floor.
All
Sax Lift A/S scissor lift tables can be modified
and delivered with extra equipment for even more
flexibility. |
Lift
type |
Capacity |
Stroke |
Min.
height |
Max.
height |
Platform
length |
Platform
width |
Motor
power |
Lifting
time |
Single
scissor |
kg |
mm |
mm |
mm |
mm |
mm |
kW |
sec |
IL1000X |
1000 |
860 |
180 |
1040 |
1300 |
800 |
0,75 |
22 |
IR1000 |
1000 |
590 |
180 |
770 |
916 |
610 |
1,1 |
20 |
IL1000S |
1000 |
795 |
205 |
1000 |
1300 |
700 |
1,1 |
19 |
IL2000 |
2000 |
850 |
190 |
1040 |
1300 |
800 |
0,75 |
- |
IL2000B |
2000 |
800 |
230 |
1030 |
1300 |
850 |
2,2 |
25 |
IL2000SB |
2000 |
1050 |
250 |
1300 |
2000 |
1000 |
2,2 |
36 |
IL2000SBS |
2000 |
1050 |
250 |
1300 |
1800 |
1000 |
2,2 |
36 |
IL3000 |
3000 |
795 |
235 |
1030 |
1300 |
800 |
1,5 |
- |
IL3000B |
3000 |
840 |
240 |
1100 |
1700 |
1200 |
2,2 |
40 |
IL3000SB |
3000 |
1100 |
300 |
1400 |
2200 |
1200 |
2,2 |
50 |
IL3000BBS |
3000 |
950 |
350 |
1300 |
2200 |
1800 |
2,2 |
25 |
IL3000BB |
3000 |
950 |
350 |
1300 |
2200 |
2200 |
2,2 |
25 |
IL4000B |
4000 |
840 |
240 |
1100 |
1700 |
1200 |
2,2 |
40 |

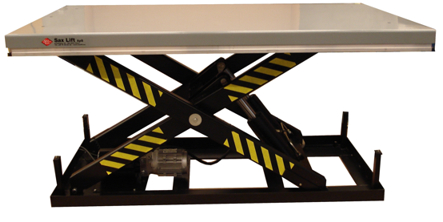

IL4000SB |
4000 |
1100 |
300 |
1400 |
2200 |
1200 |
2,2 |
50 |
IL4000BBS |
4000 |
950 |
350 |
1300 |
2200 |
1800 |
2,2 |
25 |
IL4000BB |
4000 |
950 |
350 |
1300 |
2200 |
2200 |
2,2 |
25 |
IL5000 |
5000 |
2030 |
600 |
2630 |
3000 |
2000 |
3,0 |
75 |
Double
vertical |
Capacity |
Stroke |
Min.
height |
Max.
height |
Platform
length |
Platform
width |
Motor
power |
Lifting
time |
|
kg |
mm |
mm |
mm |
mm |
mm |
kW |
sec |
ILD1000 |
1000 |
1475 |
305 |
1780 |
1300 |
820 |
2,2 |
22 |
ILD3000 |
3000 |
1650 |
400 |
2050 |
1700 |
1200 |
2,2 |
65 |
ILD4000 |
4000 |
1650 |
400 |
2050 |
1700 |
1200 |
2,2 |
65 |
ILD1000-3 |
1000 |
2530 |
470 |
3000 |
1700 |
1000 |
2,2 |
45 |
ILD2000-3 |
2000 |
2440 |
560 |
3000 |
1700 |
1000 |
2,2 |
65 |
ISD1500 |
1500 |
3000 |
470 |
3470 |
2200 |
1300 |
2,2 |
60 |
Double
horizontal |
Capacity |
Stroke |
Min.
height |
Max.
height |
Platform
length |
Platform
width |
Motor
power |
Lifting
time |
|
kg |
mm |
mm |
mm |
mm |
mm |
kW |
sec |
ILH2000 |
2000 |
795 |
205 |
1000 |
2500 |
820 |
1,1 |
19 |
ILH4000B |
4000 |
840 |
240 |
1100 |
3400 |
1200 |
2,2 |
55 |
ILH4000SB |
4000 |
1100 |
300 |
1400 |
4400 |
1200 |
2,2 |
55 |
ILH6000B |
6000 |
840 |
240 |
1100 |
3400 |
1200 |
2,2 |
- |
ILH6000SB |
6000 |
1100 |
300 |
1400 |
4400 |
1200 |
2,2 |
- |
Low
profile |
Capacity |
Stroke |
Min.
height |
Max.
height |
Platform
length |
Platform
width |
kW |
Lifting
time |
|
kg |
mm |
mm |
mm |
mm |
mm |
kW |
sec |
ICB1000 |
1000 |
795 |
85 |
880 |
1450 |
800 |
1,1 |
25 |
ICB1000B |
1000 |
795 |
85 |
880 |
1450 |
1140 |
1,1 |
25 |
ICB2000 |
2000 |
775 |
105 |
880 |
1600 |
1000 |
2,2 |
35 |
ICBH1000 |
1000 |
795 |
85 |
880 |
2900 |
800 |
1,1 |
- |
IU1000 |
1000 |
795 |
85 |
880 |
1450 |
1140 |
1,1 |
22 |
IU1500 |
1500 |
775 |
105 |
880 |
1600 |
1180 |
1,5 |
30 |
| |
